348 Series

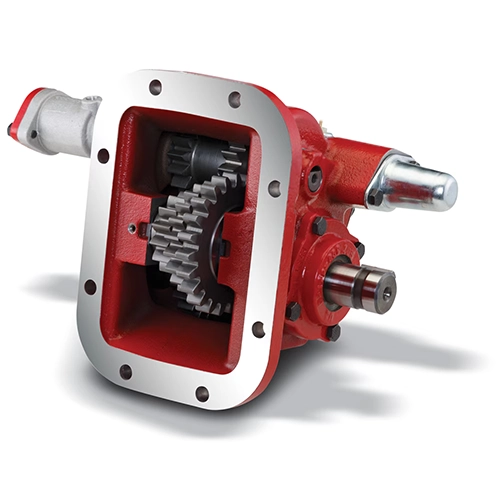

The Chelsea 348 Series Power Take-Off (PTO) is designed for rugged forward and reverse applications where reliability and efficiency are essential. Built with an 8-bolt mounting flange, it eliminates the need for an adapter plate when installing on compatible transmission openings, simplifying setup and reducing installation complexity. This economical yet durable PTO features a cast iron housing and heavy-duty ball bearing output support, helping deliver improved torque capacity and extended service life in demanding mobile environments. Chelsea was among the first to introduce air-shifted forward and reverse PTO technology, setting an industry benchmark for performance and adaptability. Its flexible air-shift system allows the shift cylinder to be positioned for optimal clearance during installation. With a torque rating of up to 200 lb-ft, the 348 Series offers dependable performance across a wide range of vocational applications. Additional design features include a removable cover plate for backlash adjustment, a ball-bearing supported output shaft, and a variety of input gear options to accommodate different applications. The PTO provides single low-speed forward and reverse operation. The Chelsea 348 Series is commonly used in oil and gas and other mobile equipment markets, with applications including oil field service and logging operations, where durability and consistent performance are critical.
